The Big Picture

    We collate four classes of data:
   Geological data obtained by physical analysis of sampled cuttings and photo microscopy of the strata.
   Hydrocarbon data from our precision analysis of drilled gases accurately lagged to drilled depth.
   Surface drilling data (including mechanical, hydraulic and engineering parameters) to maintain proper balance of formation fluid pressures, to optimize the drilling process and help control drilling costs.
   Down Hole drilling data, integrating parameters from MWD or E-Logs to insure superior correlation.

                  WellSight Data Center

  Using Windows Graphing best practices we have developed an intuitive user interface delivering at-a-glance clarity and instant status updates promoting active involvement in the drilling process. Some systems only inform users of what has happened.

   The WellSight Data Center keeps the operator informed of what is happening  promoting active participation in the drilling process.

  The Chromat image on the right is but one example.

                WellSight Chromatography
   Innovative QFD analysis with gas dependent sample valve timing, user selectable elution timer, pulse width modulated pump speed control and other variable parameters provide maximum flexibility in any scenario.
  Manual Integration insures the user's direct correlation to cuttings analysis while automated Interpolation insures the elimination of human error in component calculations.
   A "chromat slide show" indexed to lagged depth for a histogram of chromat records to keep the user closely involved in the changing formation to hydrocarbon ratio relationship.

                         Click on lower right to zoom.

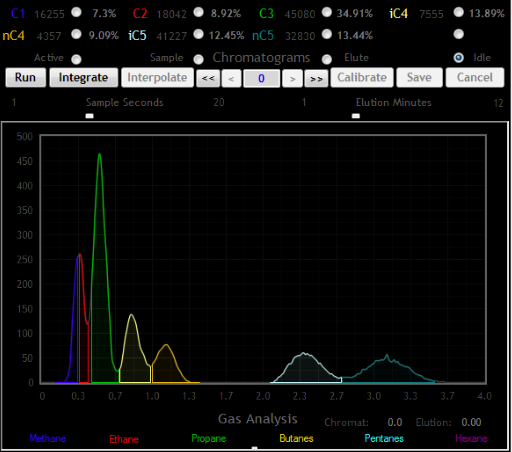

This is our Chromatograph displaying C1-nC5. Note C1 through nC4 elute in under 1.3 minutes while the Pentanes elute in less than 3.5 minutes

         Quantum Field Digital Gas Analysis
   To observe the Quantum Effect a pulsed tungsten emitter induces an energy level change in a gas sample. This produces shifts in the quantum fields of  carbon atom's electron orbits.
   Aerospace  grade imaging devices measure these quantum level jumps in the electron orbits by the absorption spectra of these hydrogen bound carbon atoms.

   Now very precise gas density calculations are possible for broad-band, zero-drift, hands-free digital accuracy, repeatibility and durability for both Total Gas and  Chromatography. Nothing else comes close.

                      WellSight Data Base

   WellSight's multi-tabled relational data base enables collating events in real time and in the lag function for finer analysis of the data for greater geological detail, better fluid pressure balance and hole stability.
